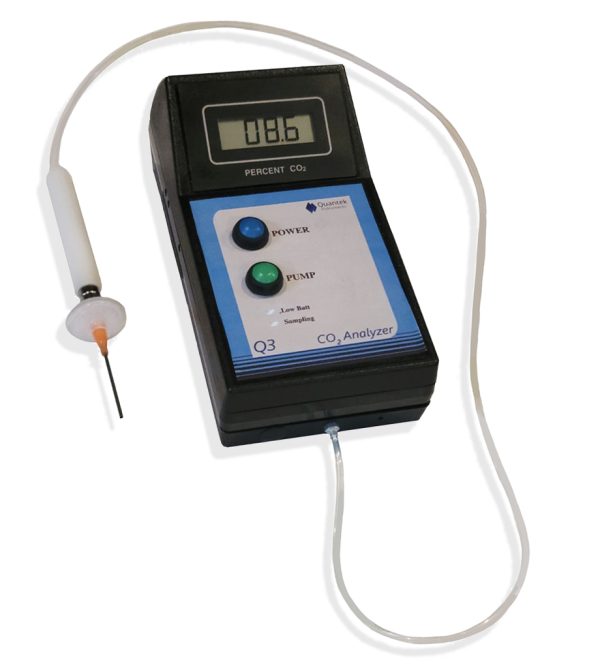

Q3 Portable CO2 Analyzer for Incubator

The Q3 is a portable CO2 analyzer, used for incubator measurement and other scientific applications.

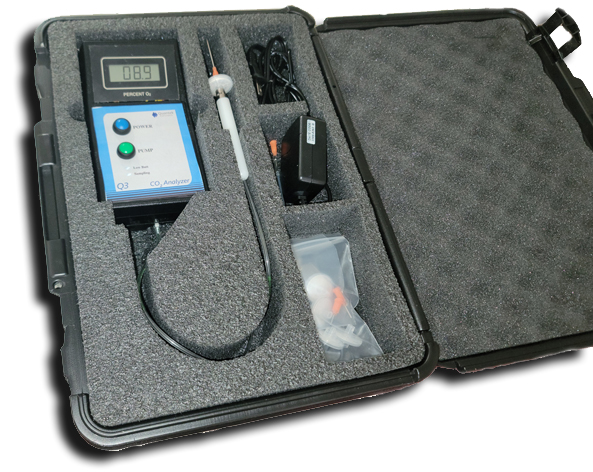

It weighs only 2 lbs, and comes with rechargeable batteries, sample probe, charger, and accessories to begin sampling.   There is also a TSA approved hard carry case for easy portability and protection (included).

SKU: Q3-1 Category:
Lead Time: 2-5 business days

OVERVIEW

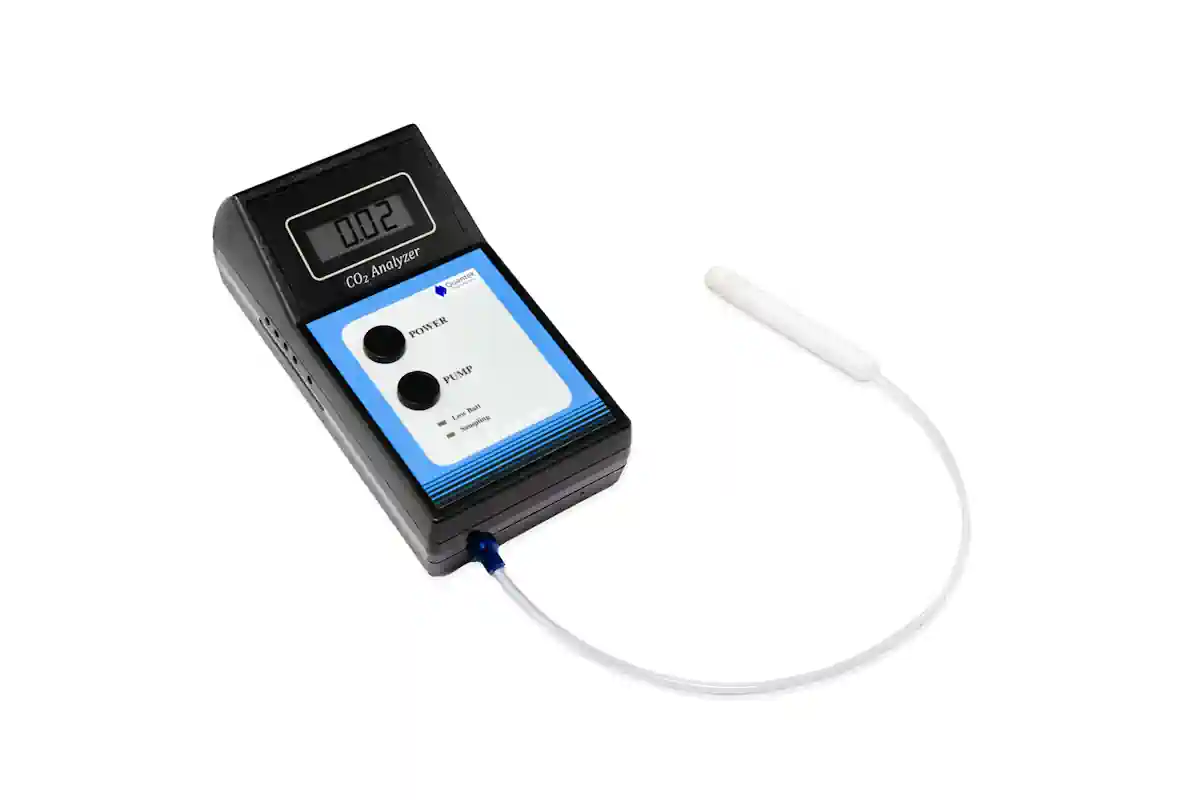

The Q3 is a portable CO2 analyzer, used for incubator and other process testing.   Simply insert the sample probe into the sampling port on your incubator, press the pump button, and
obtain results quickly and accurately.    The Q3 weighs only 2 lbs, and comes with rechargeable batteries, sample probe, charger, and  accessories to begin sampling. There is also a hard carry case for easy portability and protection.    The Model Q3 is designed for spot check monitoring of CO
2 levels in all types of incubators,  processes, gas blending, biotech, and other systems. It is available with measurement of ranges 0-
20% or 0-100%. Battery operation and carry case are included
.

USER FRIENDLY, ACCESSIBLE CONTROLS

On the side of the instrument there are three adjusting potentiometers – you can adjust the  pump time, CO2 span, and CO2 zero.   There’s no need to reboot and no need to warmup – it’s as easy as it gets.

ABOUT THE SENSOR

The infrared CO2 sensor utilizes NDIR technology for maximum stability, and has a theoretically unlimited lifespan. Its ultra low power consumption allows for 10-14 hours of runtime for the analyzer before recharging is required.

It has no moving parts, no consumables, and is housed in a compact optical cell.  The sensor responds to CO2 only and is unaffected by other gases.

WARRANTY STATEMENT

The Model Q3 is backed up with a two year warranty, twice the industry standard.



Carbon Dioxide Sensor Type Solid-state Infrared
Accuracy - Carbon Dioxide ± 1% of reading, or ± 0.2% CO2 (whichever is greater)
CO2 Minimum Detection Limit 0.1% (0-100% range) or 0.01% (0-20% range)
CO2 Calibration Controls Potentiometer SPAN adjustment for CO2 and zero adjusment
CO2 Calibration Frequency Every 12 months; calibration gas recommended.
Expected Lifetime (oxygen) 4-5 years
Oxygen Range 0.00 to 100%
Oxygen Sensitivity 0.1% O2
O2 Resolution 0.1% O2
Analog Output Not Available
Accuracy : +/- 1% of reading; +/- 0.1% absolute below 10.0%
Drift less than 0.4% per year
Oxygen Sensor Type Proprietary electrochemical cell, expected lifetime 4-5 years
Response Time 15 seconds to T95
O2 Sensor Lifetime 4-5 Years
O2 Sensor Body ABS Resin
Sample Connection Sample Probe
Sample Method Pump
Sample Pump Miniature diaphragm type with ~5cc/sec flow
Pump Timing 2-12 second adjustable pump time, potentiometer on side of analyzer
Minimum Sample Required 20cc
Sampling Assembly Probe with female luer connection for filter and needle, low volume PTFE tubing
Oxygen Calibration Controls SPAN adjustment, zero adjustment
Instrument Calibration Calibrates with room air; coarse SPAN adjustment on back; fine span adjustment on side; ZERO adjustment on side (calibration gas recommended for CO2)
Exhaust port Vents to air
Power Supply Four "AA" NiMH rechargeable batteries; auto shut-off after 45 minutes idle. 100-240V (50-60Hz) Charger included, with US or international interchangeable plug adapter (upon request)
Backup Power Four "AA" alkaline batteries (not included)
Battery Operation Included
Input Voltage 100-240V, 50-60Hz
Battery Life 8-12 hours before recharging
Measures: O2, CO2 CO2
Form Factor Portable
Size 8 x 4 x 1.8 in. (200 x 100 x 40 mm)
Weight 1 lb. (450 gms)
Warranty 2 years, parts and labor
Standards CE, RoHS
Included Consumables 200 foam septas, 2 luer fit needles, 2 particulate filters, 2 liquid block filters
Included Documentation Owners manual (includes operating instructions with detailed calibration instructions, calibration certficate, precautions), NIST calibration certificate
Origin of Goods Our products are manufactured in the U.S.A.
Products by Gas CO2
Products by Applications Gas Flow / Process Analyzers
  • Built-in pump, sample probe.
  • Starter pack of 25 filters
  • Sample probe (with spare tube)
  • Charger (for analyzers with optional internal battery) – (International compatible 100-240V)
  • TSA Approved carry case
